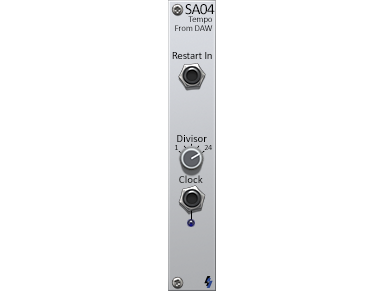

SA04 Tempo From DAW

Product Description

(This module is included in the System B)

The SA04 brings the tempo from DAW into SoloRack by means of a clock. This clock is always ON regardless of the transport controls (Play,Stop,Pause) of your DAW as opposed to the SA03 which provides a strictly synced clock which starts and stops with your DAWs transport controls. However, the SA04 provides a restart in patch point which when triggered, will restart the clock.

When the divisor knob is at 24, the clock out becomes a pulse timed exactly at the current DAW tempo. When the divisor knob is at 1. The clock out plays at MIDI standard speed, which is 24 times the DAW beat tempo. The divisor values from left to right are 1, 3, 6, 12, 24
