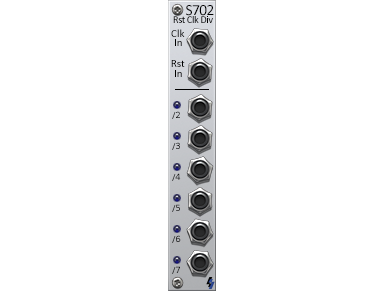

S702 Reset Clock Divider

Product Description

(This module is included in the System B)

The S702 is a clock divider with reset functionality. The job of a clock divider is to generate lower frequency clocks when fed with a higher frequency clock. Clock divisions are /2, /3, /4, /5, /6, /7. Contrary to the S703, the S702 has lower and finer divisions.

A Rst In (Reset In) port is provided. When a high CV (>=0.25V) is detected here, all outputs will be reset and will remain so as long as the voltage at Rst In remains high. Normal operation proceeds if low CV (<=0.15V) is detected. If mid level CV is detected (i.e between 0.15 and 0.25), then the module will pause its clocking operation but WITHOUT reseting, this means that the all outputs will hold their current states.
